DMP50

The discontinued models

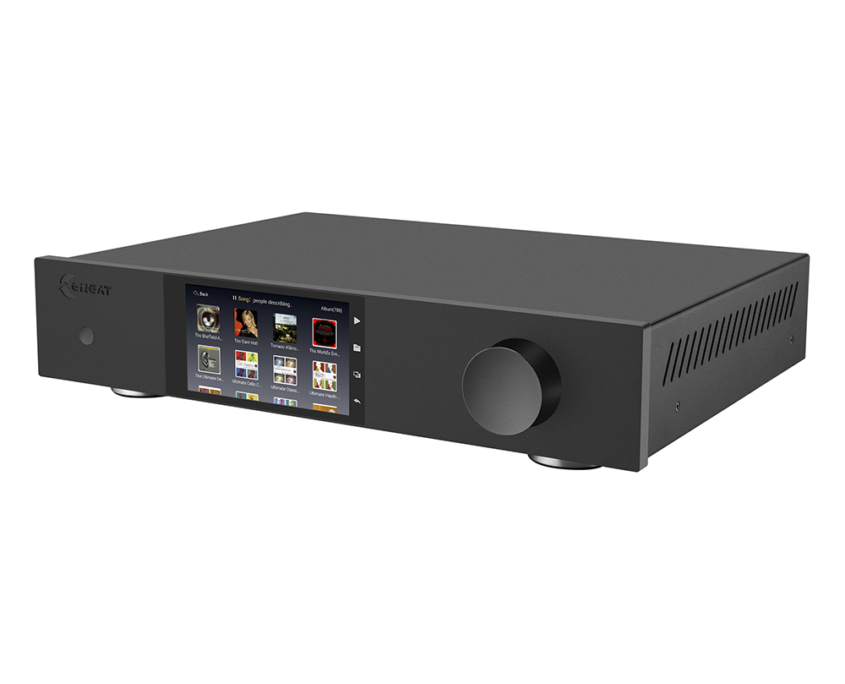

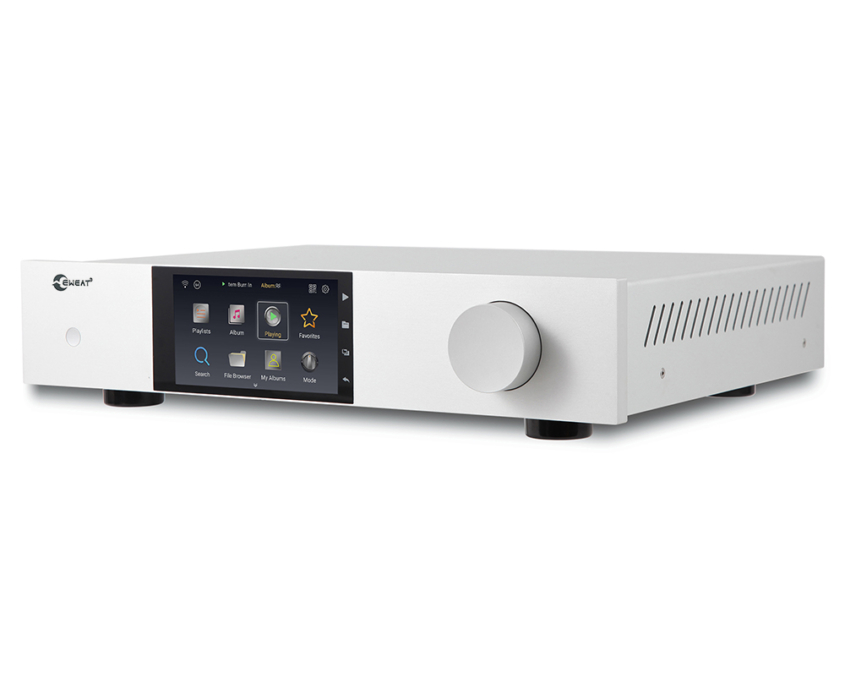

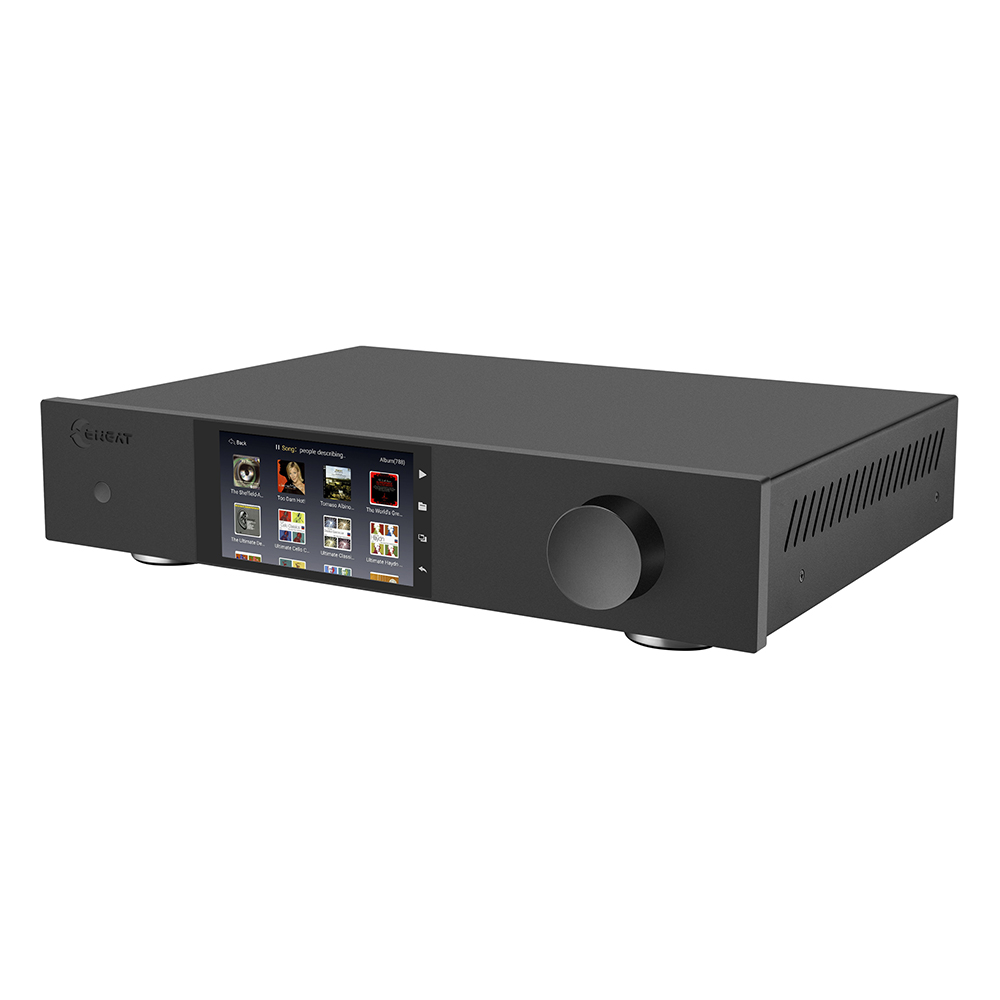

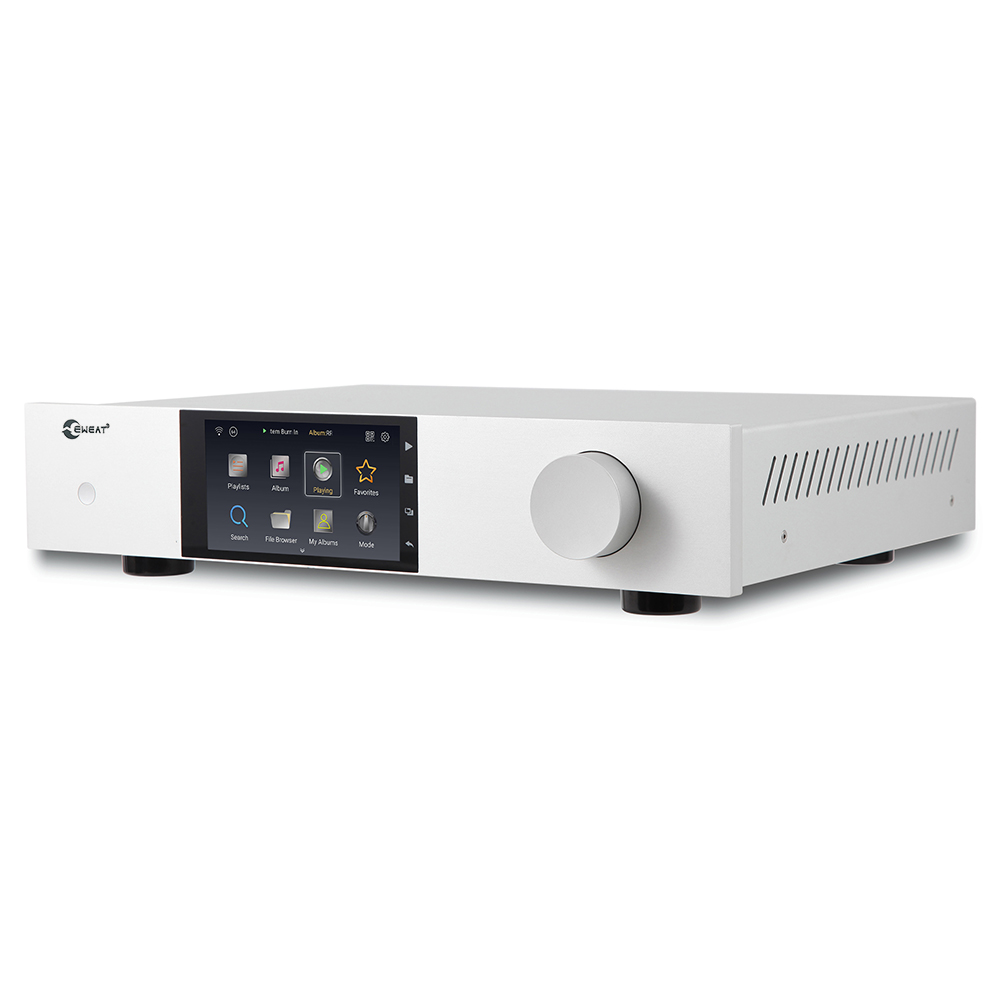

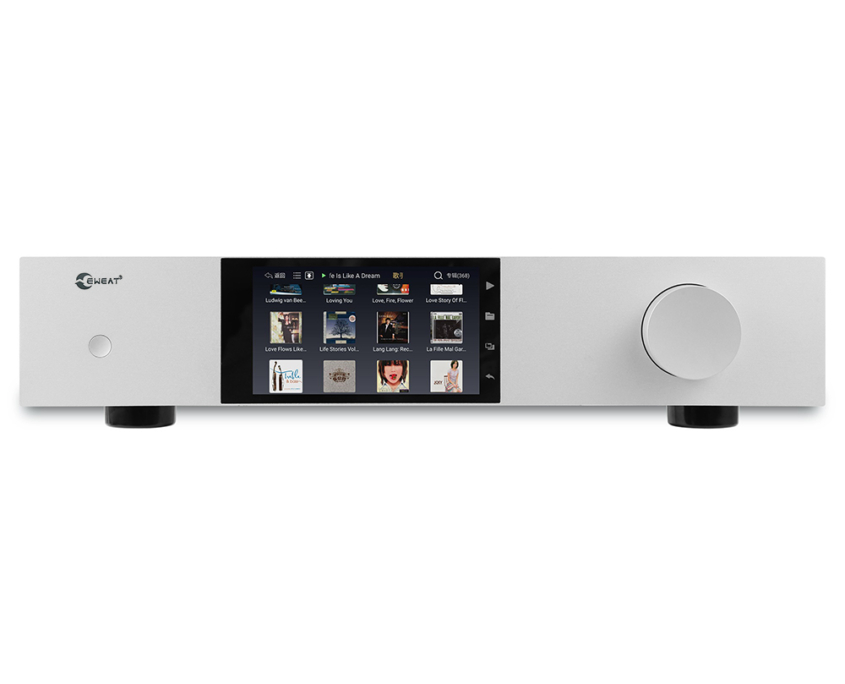

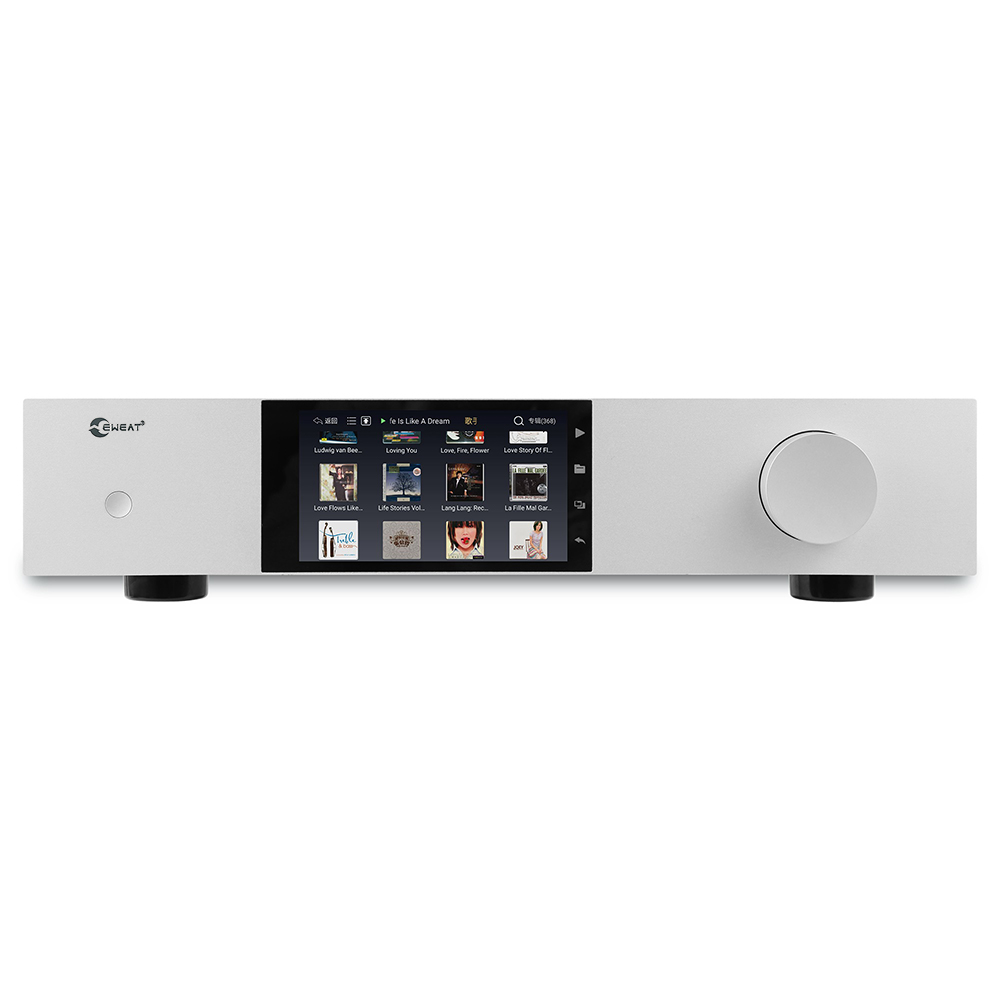

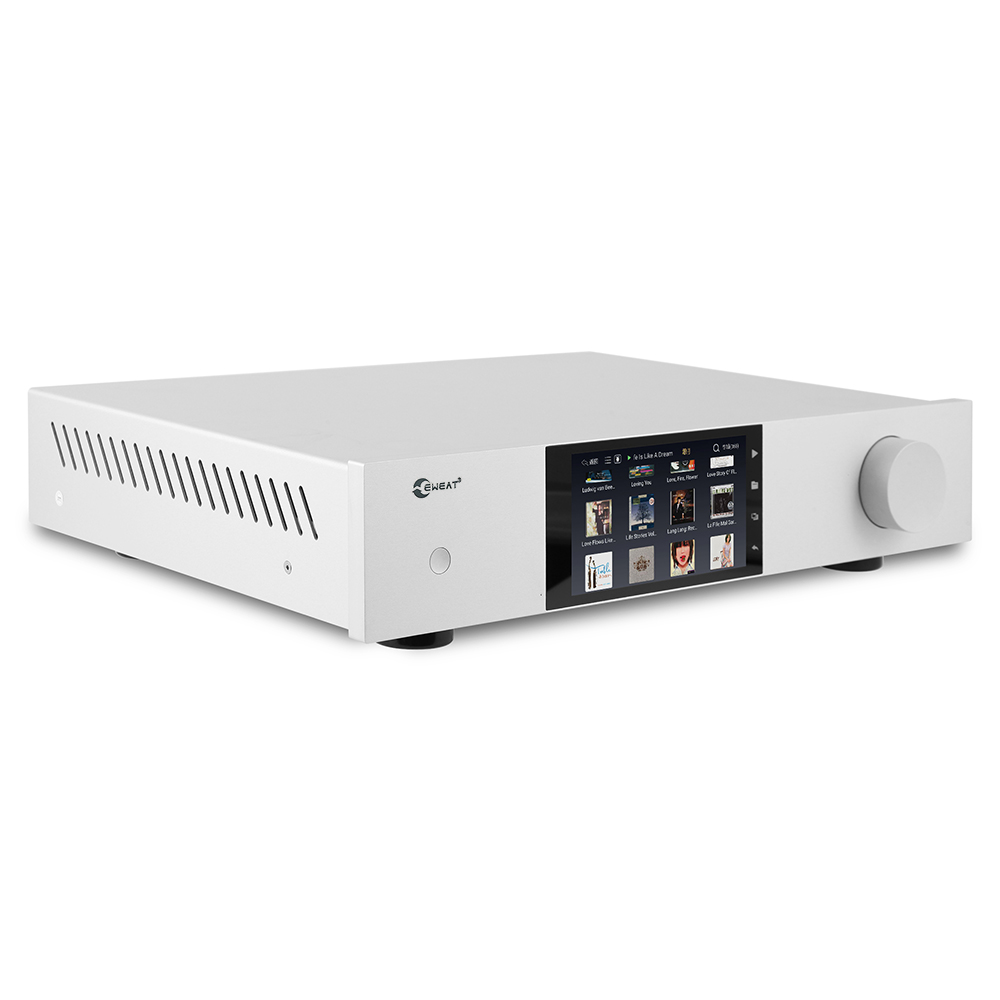

EWEAT DMP50: The Pinnacle of Digital Music Playback

Elevate your listening experience to its absolute peak with the DMP50 High-Fidelity Music Player.

Engineered for the discerning audiophile who accepts nothing less than perfection,

the DMP50 is not just a player; it’s a definitive statement of musical accuracy and power.

At the core of the DMP50 resides the legendary ESS Sabre ES9038PRO DAC,

the reference-grade chip revered for its unparalleled technical performance.

The DMP50 is the ultimate source for your high-end system, designed to reveal the full potential of your music and your components.

Basic Parameters

Master Clock Jitter	Below measurable levels
Digital Sampling Rates (Fs)	44.1 kHz to 768 kHz, 16bit to 32bit ,DSD64 to DSD512
Digital Filter	32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters	2 – 2 channel ESS9038 Pro for working on true balanced output
BLUETOOTH	Bluetooth v 4.2with aptX® HD for 24 Bit / 48 kHz high definition audio decoder
Network protocol	DLNA AIRPLAY, SAMBA and ROON

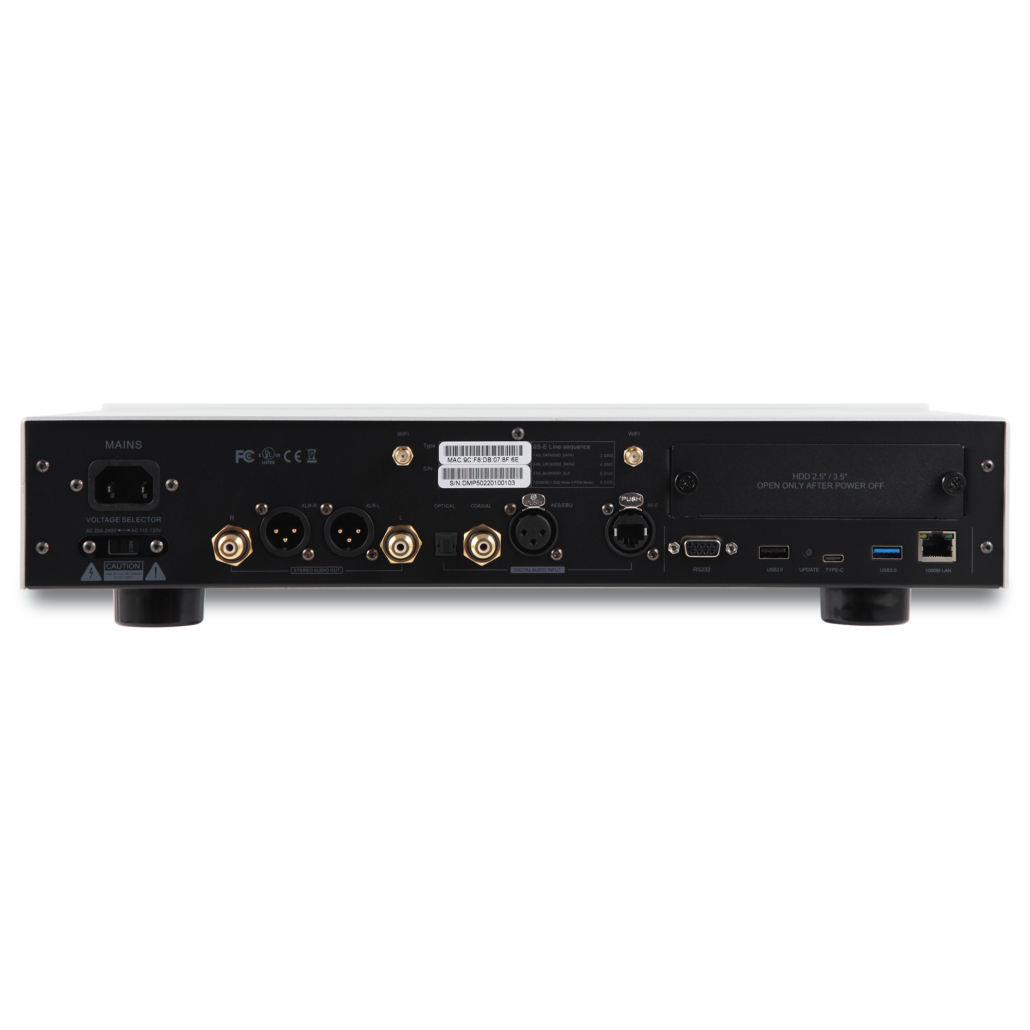

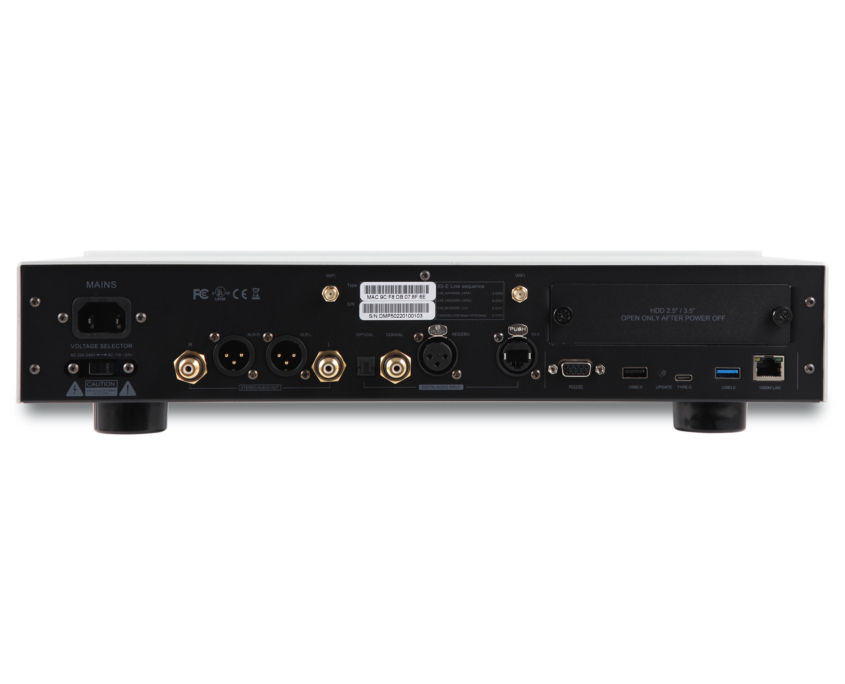

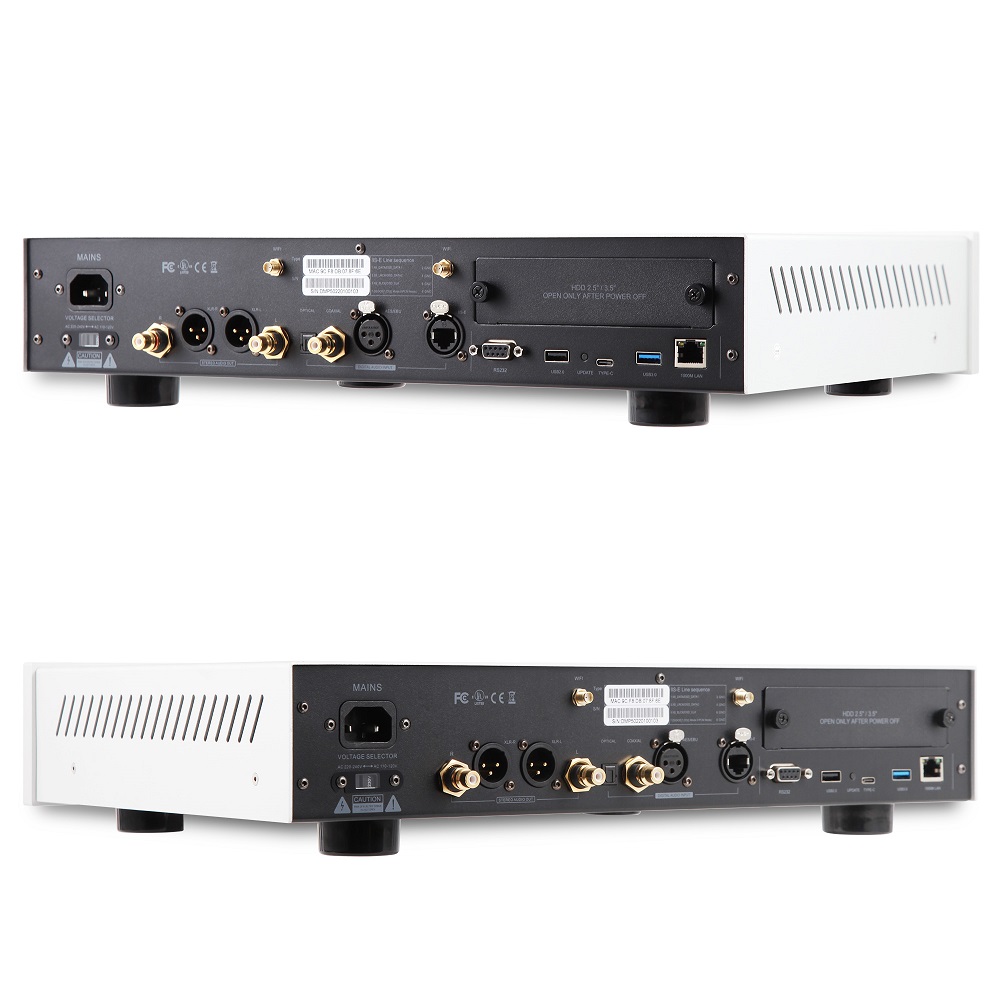

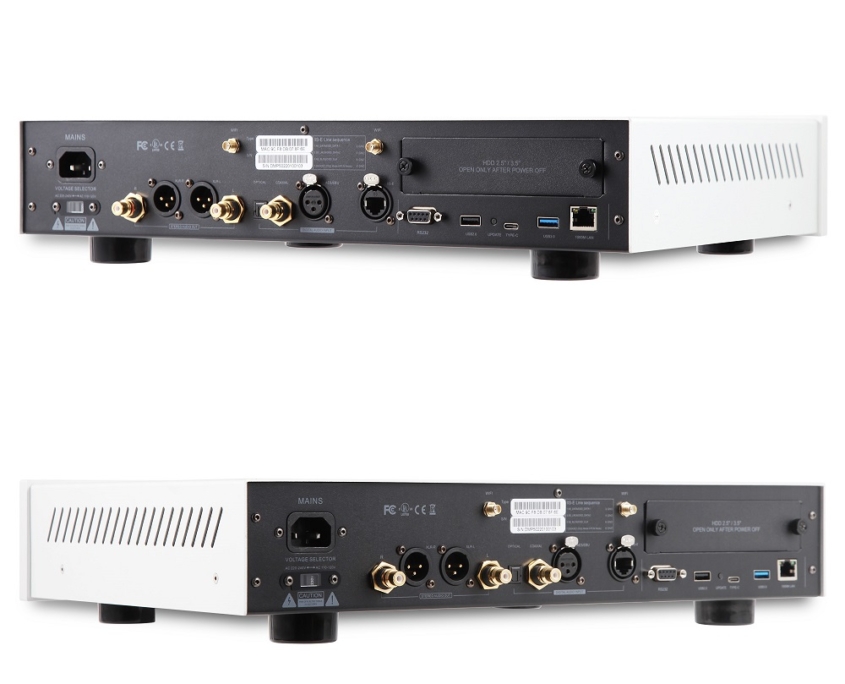

Digial audio input	AES/EBU, IIS-E, Optical and Coaxal
Analog Outputs	Balanced XLR, Non-Balanced RCA
RS232	RS232 port x1
Communication	Ethernet RJ45 full remote configuration interface
Communication	802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI

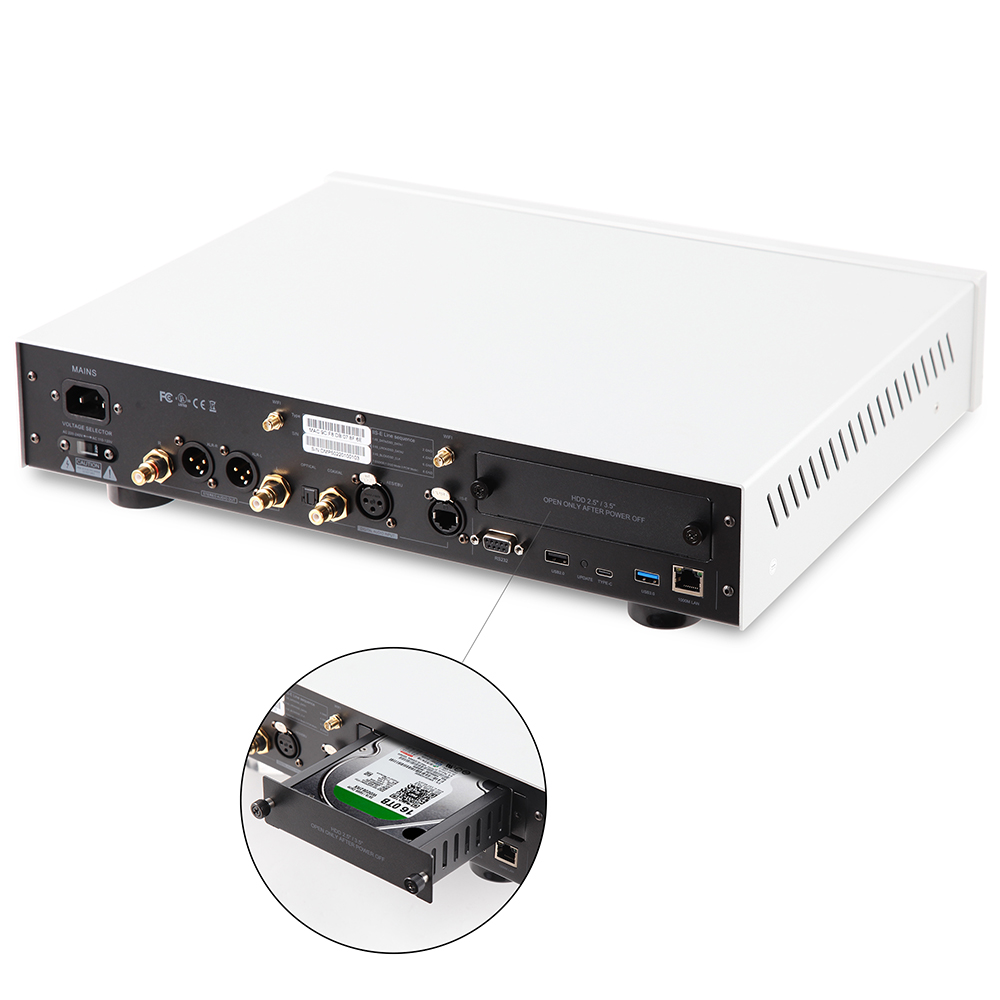

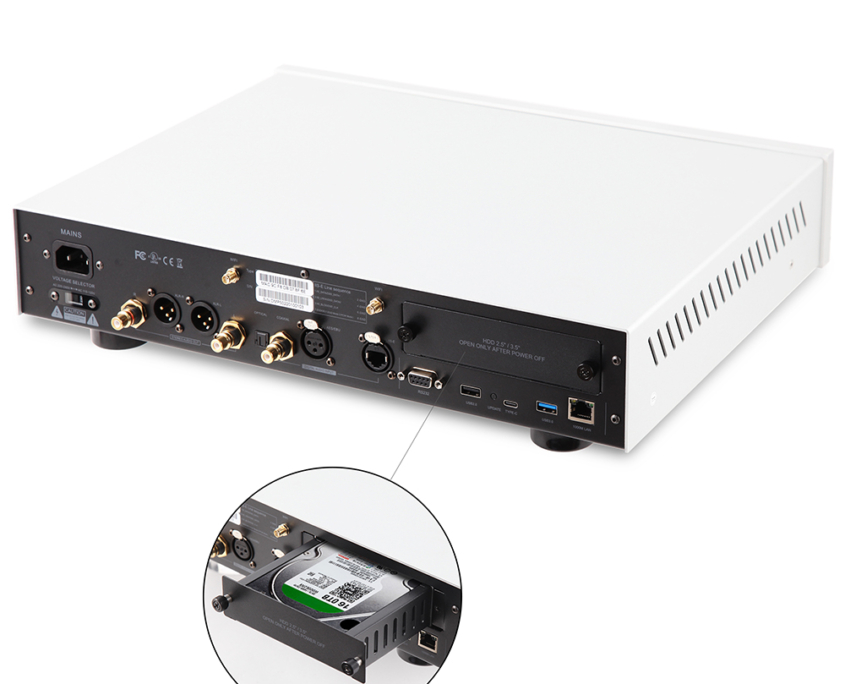

Hard Disk Drive	Hard Disk Drive bays x1,up to 16T
Other connectors	USB3.0 x1,TYPE-C x1
Power Input	Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
AC Power Requirements	90 Watts
Case	Black case with silver aluminum faceplate
Weight	8.5KG
Dimensions	42.6308.5cm

Audio (LPCM)

Frequency Range	2 Hz – 22 kHz (44.1 kHz)
Amplitude Linearity	0.1 dB (20 Hz – 20 kHz)
Phase Linearity	3 degrees (20 Hz – 20 kHz)
Dynamic Range	123 dB (1 kHz)
Signal-to-Noise Ratio	123 dB (20-20KHz weighting)
Channel Separation	-136 dB (1 kHz)
Total Harmonic Distortion	0.0004% (1 kHz)
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Level	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
Playback Format Supply	.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf
Frequency Range	2 Hz – 125 kHz
Signal System	16, 20, 24, & 32 bit PCM and 1 bit DSD
Sampling Frequency	44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD
Dynamic Range	125 dB
DSD System Clock	Frequency 22.5792 MHz
Signal-to-Noise Ratio	123 dB
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Level	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

Spdif Playback

Frequency Range	2 Hz – 100 kHz
Signal System	16, 20, and 24 bit
Sampling Frequency	44.1 kHz to 192 kHz PCM
Dynamic Range	123 dB
System Clock	Frequency 22.5792 MH
Signal-to-Noise Ratio	112 dB
Audio Output Levelb	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Levelb	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
