R9PLUS PRO

The discontinued models

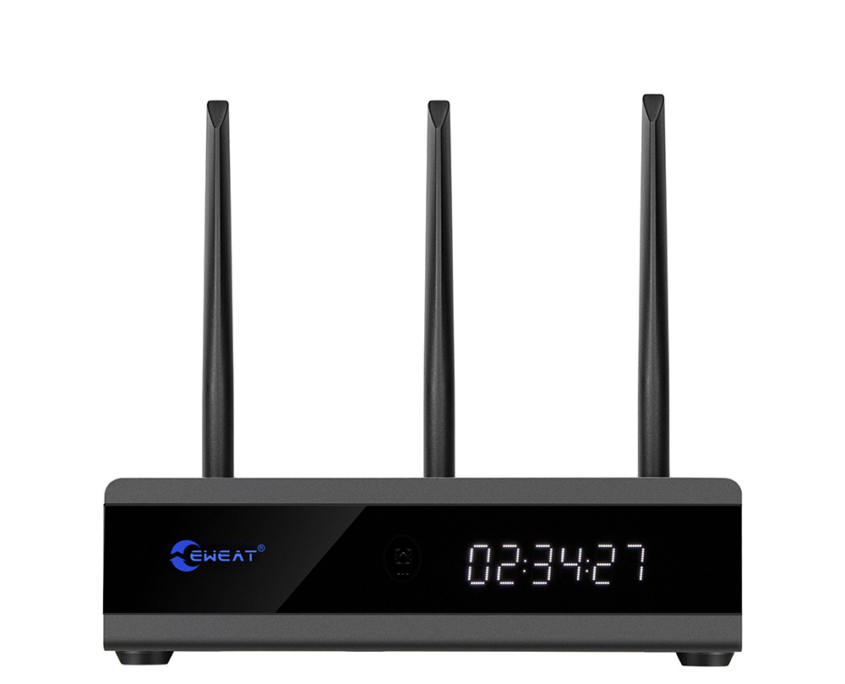

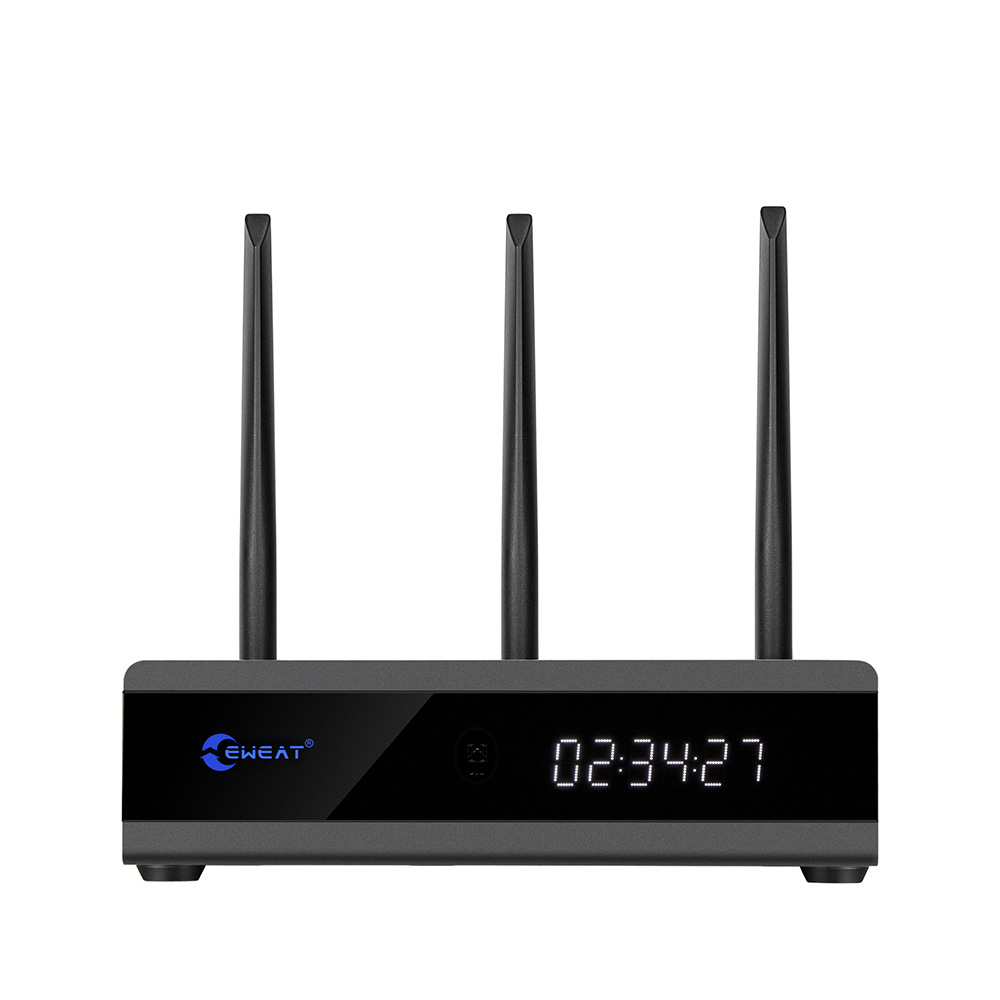

R9PLUS PRO Blu-ray Media Player | RTD1619 Chip

The R9PLUS PRO is a premium HDD Blu-ray media player designed for discerning home theater enthusiasts.

At its core lies the advanced Realtek RTD1619 processor,

delivering exceptional decoding power and seamless playback of high-resolution content.

With support for Dolby Vision, HDR10+, and hybrid log gamma (HLG),

it produces stunning visuals with vibrant colors, deeper blacks, and enhanced contrast

Ideal for 4K UHD collections and digital libraries,

the R9PLUS PRO combines cutting-edge technology with user-friendly functionality—all housed in a sleek, durable design.

Basic Parameters

Master Clock Jitter	Below measurable levels
Digital Sampling Rates (Fs)	44.1 kHz to 768 kHz
Digital Filter	32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters	2 – 2 channel ESS9038Q2M for working on true balanced output
BLUETOOTH	Bluetooth V4.2with aptX® HD for 24 Bit / 48 kHz high definition audio decoder
Analog Filter	3rd Order Bessel

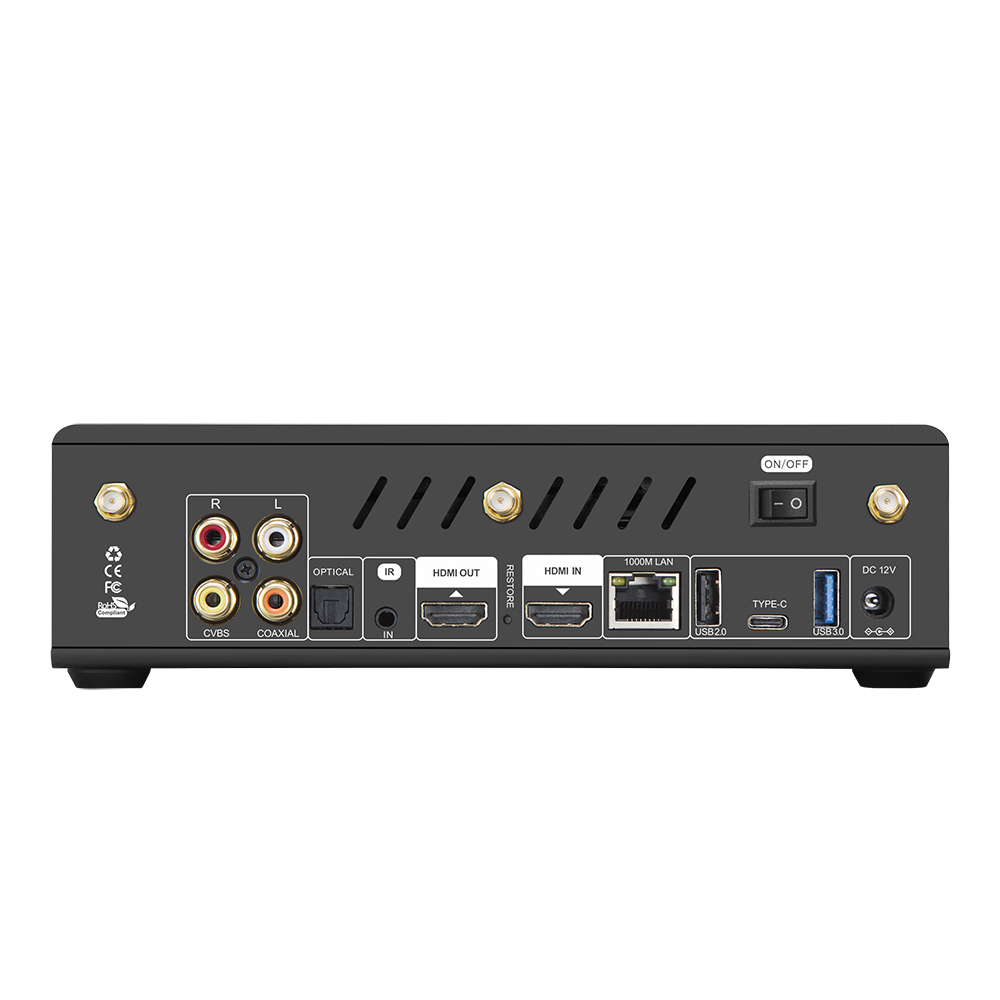

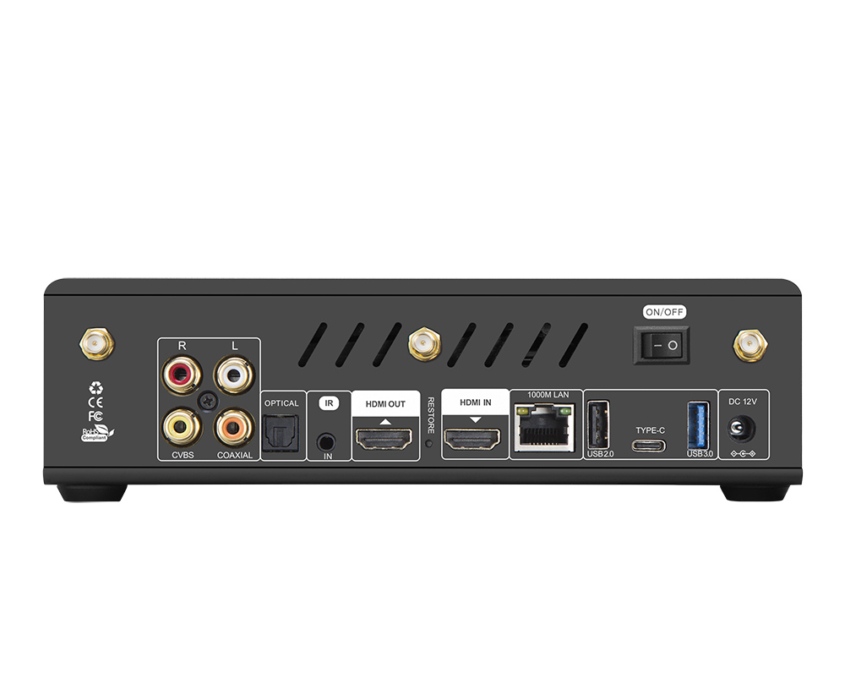

Analog Outputs	Balanced XLR, Non-Balanced RCA
Analog Outputs	IR control x1
Communication	Ethernet RJ45 full remote configuration interface
Communication	802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI

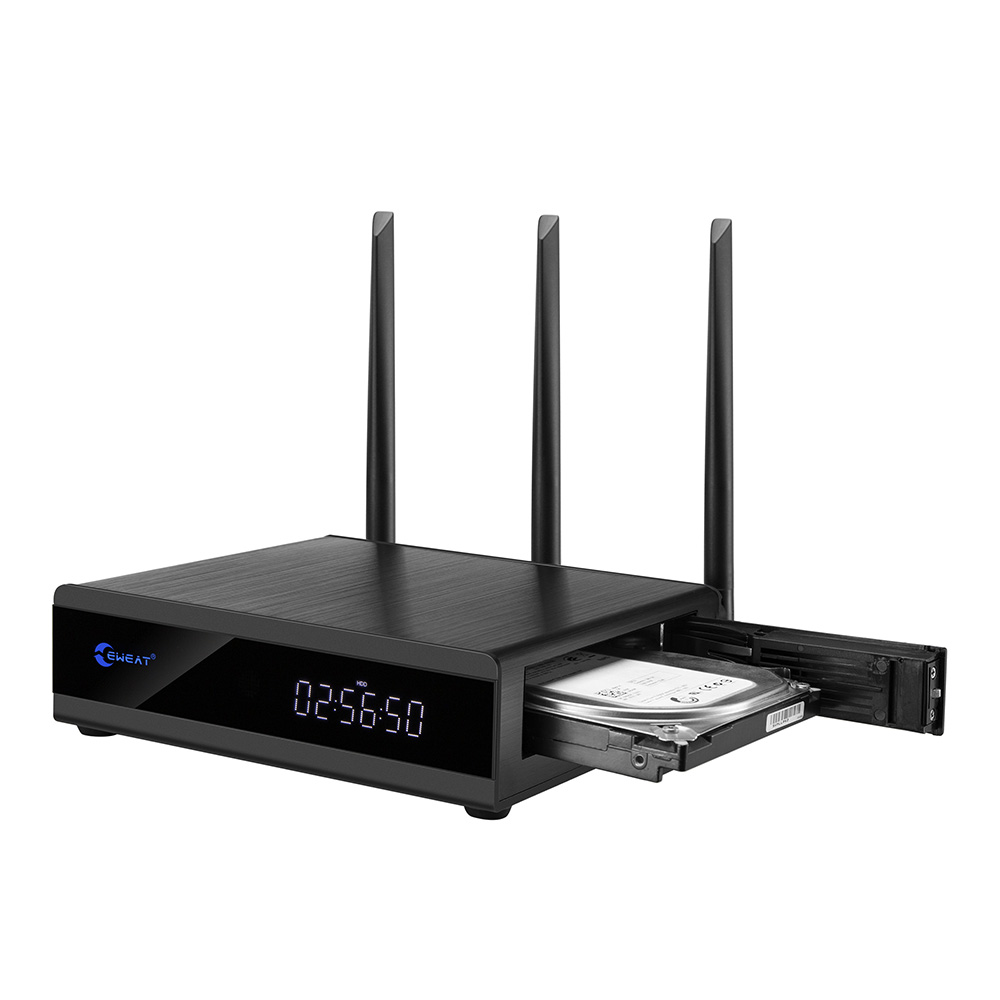

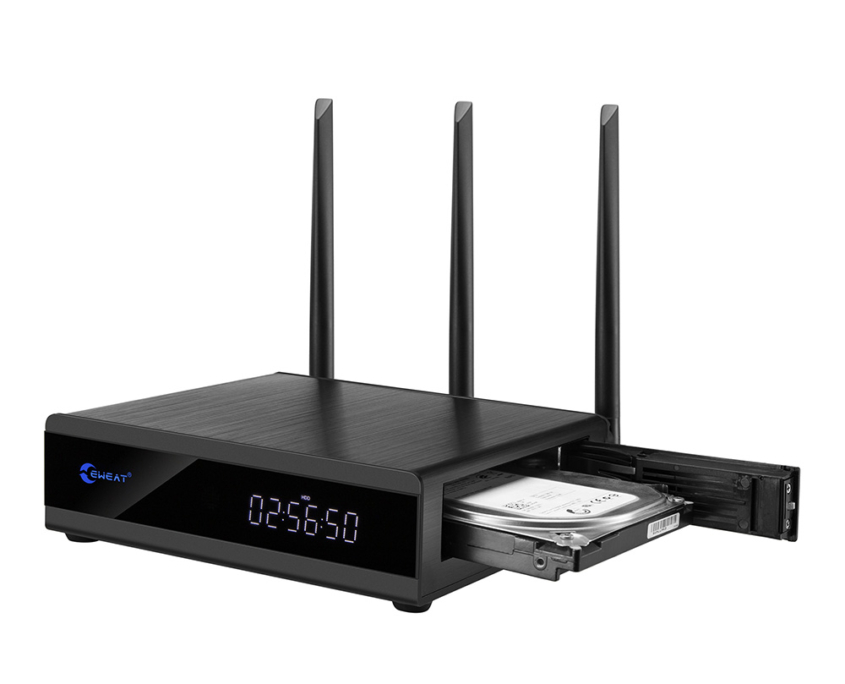

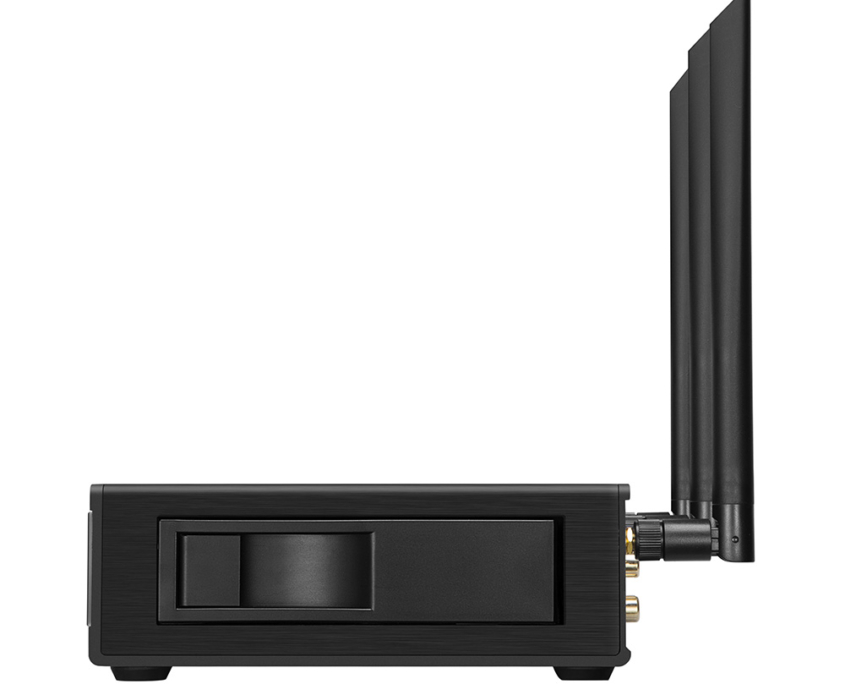

Hard Disk Drive	Hard Disk Drive bays x1,up to 16T
Other connectors	USB3.0 x1,TYPE-C x1
Power Input	Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
AC Power Requirements	78 Watts
Case	Black case with silver aluminum faceplate
Weight	6.5KG
Dimensions	(L)426(W)300(H)79 mm

Audio (LPCM)

Frequency Range	2 Hz – 22 kHz (44.1 kHz)
Amplitude Linearity	0.1 dB (20 Hz – 20 kHz)
Phase Linearity	3 degrees (20 Hz – 20 kHz)
Dynamic Range	125 dB (1 kHz)
Signal-to-Noise Ratio	113 dB (1 kHz)
Channel Separation	107 dB (1 kHz)
Total Harmonic Distortion	0.0004% (1 kHz)
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Level	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
Playback Format Supply	.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf
Frequency Range	2 Hz – 125 kHz
Signal System	16, 20, 24, & 32 bit PCM and 1 bit DSD
Sampling Frequency	44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD
Dynamic Range	125 dB
DSD System Clock	Frequency 22.5792 MHz
Signal-to-Noise Ratio	112 dB
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Level	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

Spdif Playback

Frequency Range	2 Hz – 100 kHz
Signal System	16, 20, and 24 bit
Sampling Frequency	44.1 kHz to 192 kHz PCM
Dynamic Range	123 dB
System Clock	Frequency 22.5792 MH
Signal-to-Noise Ratio	112 dB
Audio Output Levelb	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Levelb	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
